Spring-Energized Unbounded Oil Seal (FKM + Fabric Reinforcement): A Practical Analysis of Critical Rotating Shaft Sealing

In rotating shaft sealing, spring-energized unbounded oil seals are widely used for their simplicity, ease of installation, and reliability. Among them, designs featuring ​Fluorocarbon Rubber (FKM) as the primary material, embedded FKM-coated fabric reinforcement layers, and a garter spring​ deliver high performance in demanding conditions. This article explains the structural advantages, the critical role of the spring, and alternative sealing materials and their applications.

I. Structural Design & Core Benefits

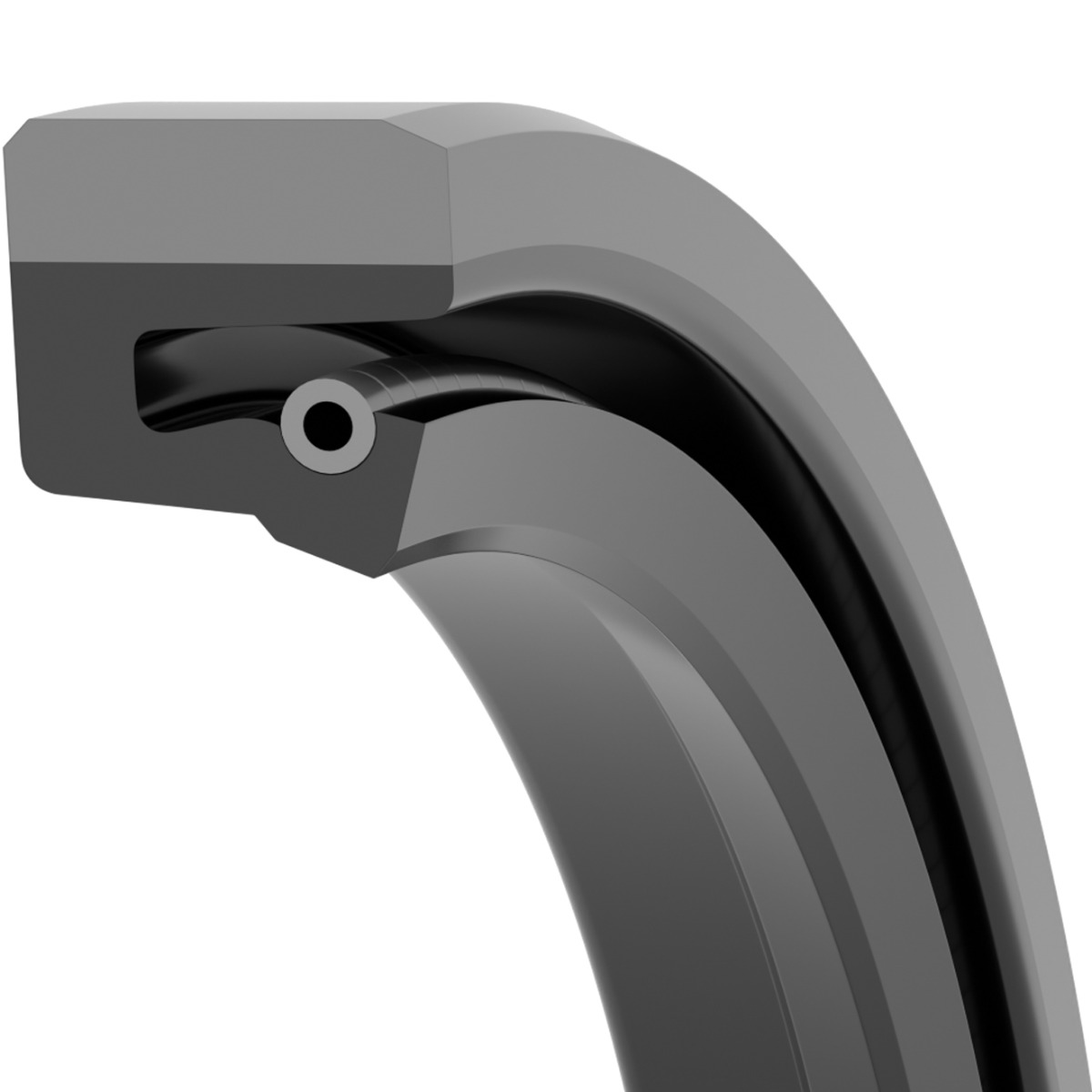

The typical unbounded oil seal comprises three layers (as depicted in the figure):

1. ​FKM Sealing Body:

   • Forms the dynamic sealing lip (primary and auxiliary dust lip).
   • ​Advantages:
     • Exceptional heat resistance (up to 200–250°C).
     • Superior resistance to oils, fuels, chemicals, and solvents.
     • Excellent weathering/oxidation stability.

2. ​Fabric-Reinforced FKM Layer:

   • ​Benefits:
     • ​Enhanced rigidity: Prevents deformation during high pressure/speed.
     • ​Reduced extrusion/wear: Extends service life.
     • ​Structural support: Maintains lip-to-shaft concentricity.

3. ​Garter Spring:

   • ​Critical Functions:
     • ​Radial force compensation: Ensures constant lip contact pressure against the shaft.
     • ​Wear/relaxation compensation: Counteracts material loss and stress relaxation.
     • ​Shaft runout adaptation: Compensates for radial eccentricity.
     • ​Low-pressure sealing: Maintains sealing at startup/low-lube conditions.

II. Material Selection & Applications

Note: Garter springs are essential for dynamic oil sealing. Dust lips typically exclude springs.

Conclusion

The unbounded oil seal (FKM + fabric + spring) combines material science and structural optimization to deliver reliability in harsh environments. Understanding the spring’s compensative role and material properties is vital for sealing performance in rotating machinery.
