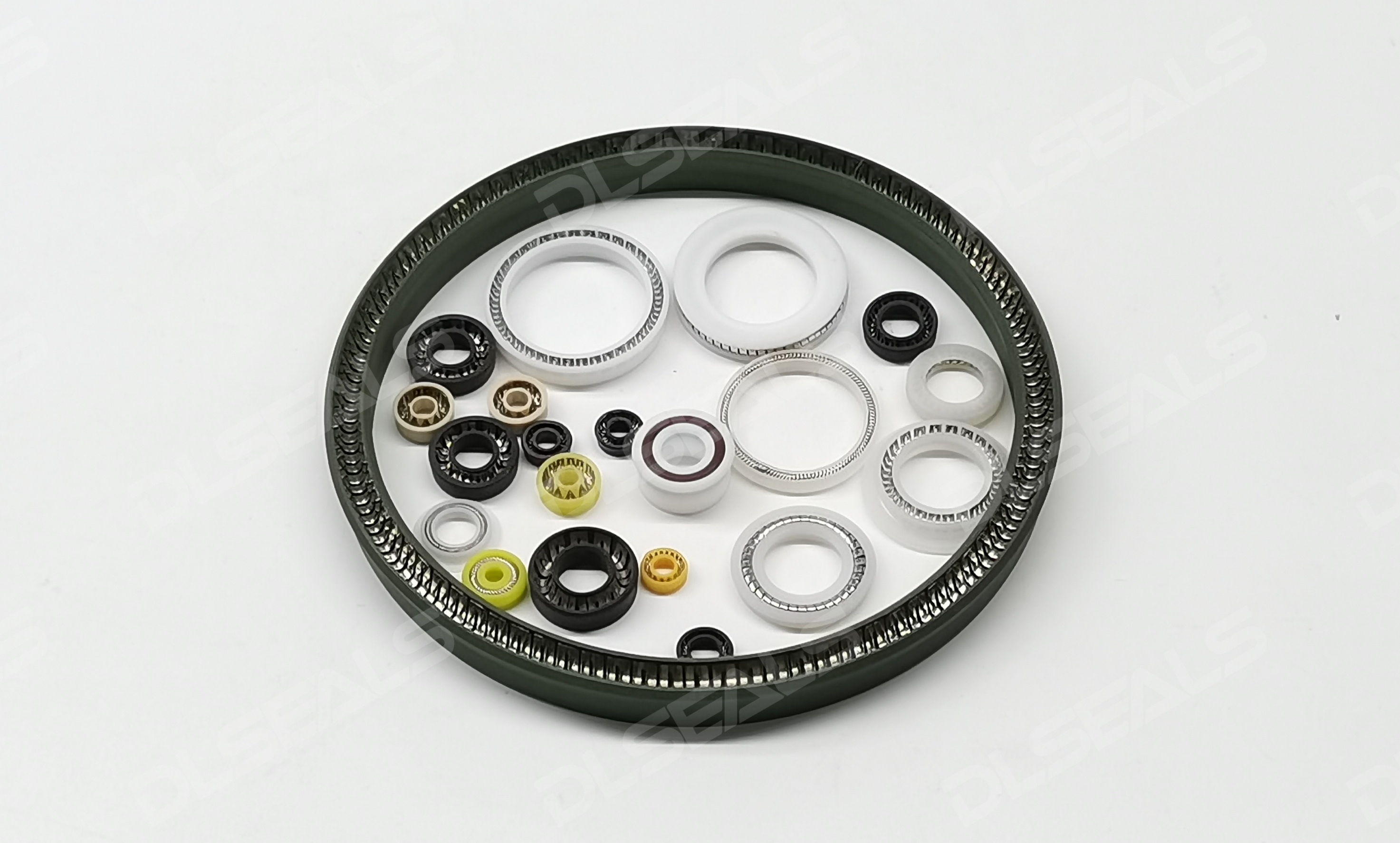

Spring-Energized Seals (Full-Contact Seals): The Sealing Solution for Extreme Service Conditions

I. Core Principle: Spring-Energized, Full-Perimeter Sealing​

The Spring-Energized Seal (often referred to as a Spring-energized seal, or spring-energized seal) is a precision sealing component comprising a flexible sealing lip combined with a high-performance metal spring. Its core operating principle relies on the continuous radial force provided by the internal spring, which maintains full-perimeter, intimate contact between the soft sealing lip and the shaft or bore surface.

1. ​Spring Preload Foundation: The internal spring generates an initial preload force upon installation, ensuring effective sealing even at zero or low system pressure.

2. ​Pressure-Adaptive Enhancement: As system pressure increases, the medium pressure acts on the back of the sealing lip, further increasing the contact pressure, creating a "self-energizing" sealing effect.

3. ​Full-Circumference Contact Assurance: The unique spring design allows the sealing lip to automatically compensate for dynamic errors like runout and eccentricity, maintaining 360° of uniform contact.

​II. Significant Technical Advantages​

1. ​Adaptability to Extreme Conditions:

   • Temperature Range: -200°C to +400°C (depending on material combination)

   • Pressure Range: Vacuum to 140 MPa

   • Surface Speed: Up to 20 m/s

2. ​Exceptional Sealing Performance:

   • Leakage Control: <0.01 ml/min (under standard conditions)

   • Friction Coefficient: 0.02-0.08 (significantly lower than O-rings)

3. ​Long-Life Design:

   • Durability: Service life can be 5 to 10 times that of O-rings under standard conditions.

   • Wear Compensation: The spring continuously compensates for lip wear.

4. ​Diversity of Material Combinations:

   The seal's performance is highly dependent on the choice of sealing lip material, which is selected based on temperature, chemical compatibility, and wear requirements. Common choices include Polytetrafluoroethylene (PTFE), known for its chemical inertness and low friction, typically used in chemical pumps and ultra-high vacuum applications, operating from -100°C to +260°C. Ultra-High-Molecular-Weight Polyethylene (UHMWPE) offers high wear resistance at a lower cost, suitable for food machinery and water treatment within -50°C to +80°C. Filled PTFE compounds provide enhanced wear resistance and anti-extrusion capabilities for demanding hydraulic systems and compressors, with a similar temperature range to pure PTFE. For the most demanding temperature and strength requirements, Polyether Ether Ketone (PEEK) is employed, capable of operating from -100°C to +315°C in aerospace and energy applications.

​III. Main Structural Types​

1. ​Standard Spring-Energized Seal: Features a single spring structure, offering an economical and practical solution suitable for most rotary and reciprocating applications.

2. ​Dual-Spring Seal: Incorporates a redundant spring design, significantly enhancing reliability for applications with extreme pressure fluctuations or where safety is critical.

3. ​Specialized Variants: These include ​Scraper Types​ that integrate a dust lip for contaminated environments and ​Compound Types​ with multiple lips for bidirectional sealing.

​IV. Key Selection Factors​

1. ​Analysis of Service Conditions: Critical parameters include the chemical properties of the medium for compatibility, the operational temperature range considering thermal expansion effects, pressure characteristics including peak pressure and fluctuation frequency, and the type of motion (rotary, reciprocating, or static).

2. ​Spring Selection Guide: The spring material is chosen for the environment: ​316 Stainless Steel​ for general corrosive conditions, ​Hastelloy​ for strong acids/alkalis, and ​Elgiloy Alloy​ for high-stress, long-life requirements.

3. ​Installation Design Essentials: Proper design is crucial and involves using grooves that conform to standards like ISO 6194, achieving an optimal shaft/bore surface roughness of Ra 0.2-0.8 μm, and ensuring a sufficient surface hardness, typically HRC ≥ 45.

​V. Typical Application Scenarios​

These seals are indispensable in severe applications across various industries. In ​extreme chemical processing, they seal agitator shafts in high-temperature, high-pressure reactors and handle strong corrosive media in pump systems. The ​energy sector​ relies on them for blowout preventer control valves in oil/gas fields and main pump shaft seals in nuclear power plants. ​High-end manufacturing​ applications include seals for semiconductor wafer handling robots and aerospace actuators. They are also critical in ​special environments​ like seals for cryogenic liquid hydrogen pumps and pressure compensation systems in deep-sea equipment.

​VI. Installation and Maintenance Specifications​

1. ​Pre-Installation Check: Ensure the spring is undamaged and contact surfaces are clean and free of contaminants.

2. ​Professional Installation Tools: Use installation sleeves to prevent lip damage during assembly and avoid using sharp tools that can compromise the seal.

3. ​Operational Monitoring: Monitor leakage during the initial run-in period and periodically check for any loss of preload during service life.

​VII. Future Technical Outlook​

The future of spring-energized seals involves greater integration and advanced materials. This includes the development of ​smart seals​ with embedded sensors for real-time condition monitoring and predictive maintenance. New material applications are on the horizon, such as ​self-lubricating nanocomposites​ and ​shape memory alloy springs. Furthermore, ​customized solutions​ will be enhanced by digital twin-based personalized design and rapid prototyping manufacturing technologies.

​Conclusion​

Spring-energized seals achieve a level of sealing reliability and adaptability to extreme conditions that is difficult for traditional seals to match, thanks to their ingenious spring-and-lip design. Successful selection and application require careful consideration of the medium, operating parameters, and equipment requirements to choose the most suitable material and structure. With continuous development in new materials and processes, these seals are poised to play a key role in an even wider range of industrial applications.
