SPNO Glyd Ring: A Benchmark for High-Performance Hydraulic Piston Sealing

In the industrial hydraulic field, a reliable sealing solution is crucial for equipment performance, efficiency, and service life. Among the many piston sealing products, the ​SPNO Glyd Ring​ stands out as a preferred choice for engineers in high-pressure and heavy-duty applications due to its exceptional performance and reliability. This article provides an in-depth look at this classic sealing element.

​1. What is an SPNO Glyd Ring?​​

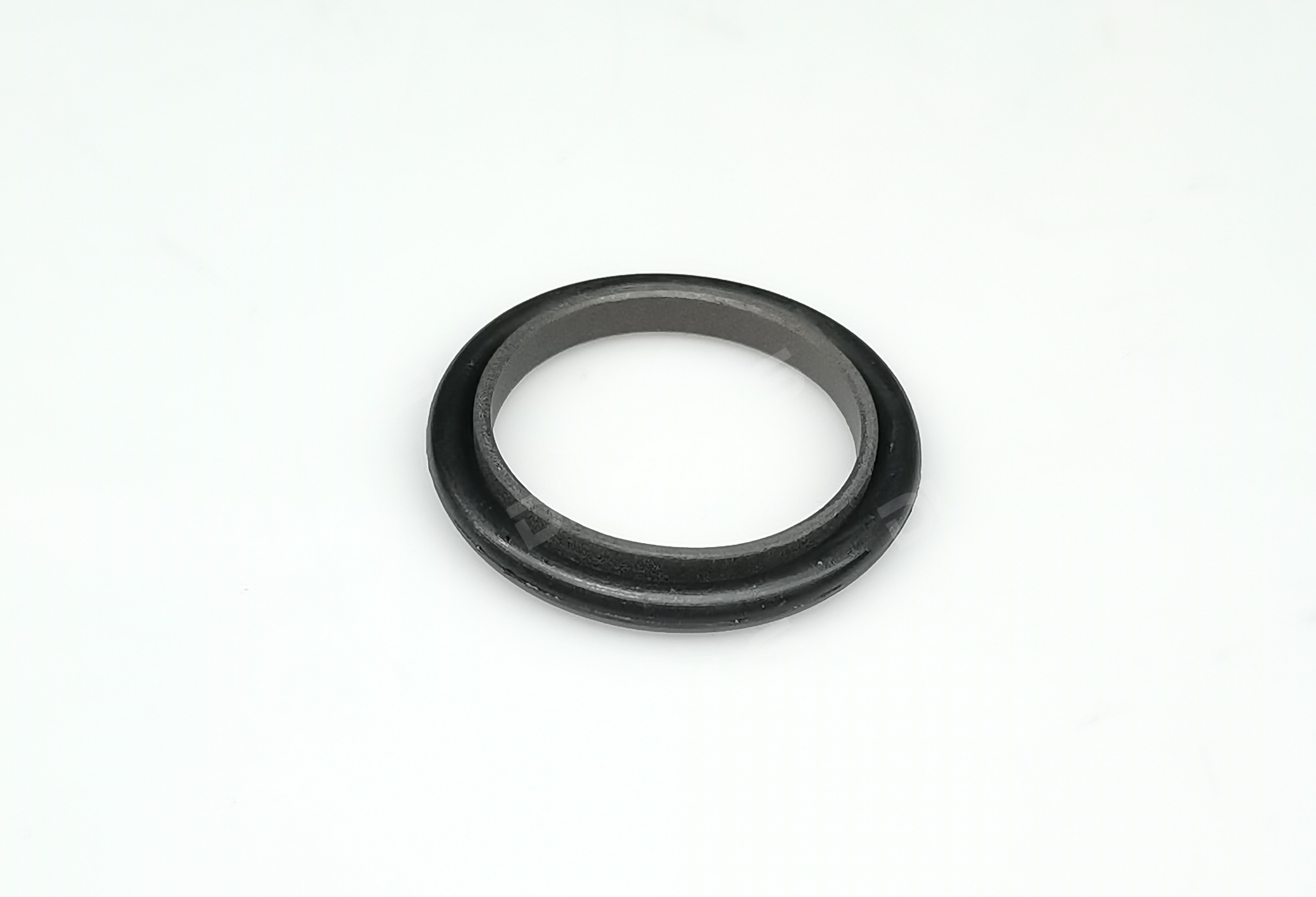

Simply put, an SPNO Glyd Ring is a ​bidirectional sealing ring​ for pistons, consisting of a combination of a ​sliding ring​ made of low-friction material and an elastic ​O-ring. The "SPNO" designation is a ​trade name or model prefix​ used by renowned sealing manufacturers like Trelleborg for their standard series of Glyd Rings. Thus, it represents a product conforming to high international standards with guaranteed performance.

Its core design philosophy is "combined advantages":

• ​Sliding Ring (Sealing Ring)​: Typically made from filled Polytetrafluoroethylene (PTFE) or high-performance polyurethane, it is responsible for contacting the cylinder barrel inner wall, providing the main sealing function. Its material properties offer an extremely low coefficient of friction and excellent wear resistance.

• ​O-Ring: Usually made of Nitrile Butadiene Rubber (NBR) or other elastomers, it acts as an energizing element. It provides continuous radial expansion force to the sliding ring, ensuring effective sealing even when the system is unpressurized or at low pressure, and automatically compensates for wear on the sealing surface.

This combination of "rigid and flexible" components gives the SPNO Glyd Ring outstanding performance in both static and dynamic sealing.

​2. Prominent Performance Characteristics​

The widespread use of SPNO Glyd Rings is due to a series of exceptional performance advantages:

1. ​Very Low Friction and No Stick-Slip: The PTFE sliding ring has a very low coefficient of friction, with minimal difference between static and dynamic friction. This effectively eliminates "stick-slip" (jerky motion) in hydraulic cylinders during low-speed startup, ensuring smooth and precise movement.

2. ​Excellent Sealing Performance: It combines the excellent elastic sealing of the O-ring with the scraping effect of the sliding ring, achieving near-zero leakage. It has a very wide working pressure range, with standard products capable of withstanding up to ​40 MPa​ or even higher.

3. ​Exceptionally Long Service Life: The high wear resistance and low friction of the sliding ring reduce wear and heat generation, resulting in a service life far exceeding that of common lip seals (like Y-rings), significantly reducing equipment maintenance costs and downtime.

4. ​Compact Design, Bidirectional Sealing: A single seal provides effective sealing in both directions of the piston's reciprocating motion, simplifying piston groove design and saving space.

5. ​Broad Applicability: It performs well with various hydraulic oils, lubricants, water-glycol fluids, and other media, and is suitable for a wide range of operating temperatures.

​3. Typical Applications​

Thanks to its superior performance, the SPNO Glyd Ring is widely used in various high-pressure, heavy-duty hydraulic equipment requiring smooth operation:

• ​Construction Machinery: Hydraulic cylinders in excavators, loaders, cranes, and concrete pump trucks.

• ​Industrial Equipment: Injection molding machines, machine tools (e.g., presses, shears), metallurgical equipment.

• ​Agricultural Machinery: Hydraulic systems in tractors and harvesters.

• ​Others: High-pressure, long-duty cycle applications like ship steering gears and hydropower gate hoists.

​4. Key Points for Selection and Installation​

To ensure optimal performance of the SPNO Glyd Ring, pay attention to the following points during selection and use:

• ​Correct Groove Design: The rectangular installation groove on the piston must be designed strictly according to the product manual, including precise dimensional tolerances and necessary lead-in chamfers to prevent damaging the seal during installation.

• ​Proper Installation: During installation, the sliding ring (usually the harder PTFE ring) should face the pressure side. Always use special installation tools and ensure the cylinder barrel inner wall is smooth and free of burrs.

• ​Strict Surface Requirements: The cooperating cylinder barrel inner wall requires sufficient hardness and low surface roughness to achieve the best sealing effect and service life.

​Summary​

The ​SPNO Glyd Ring​ is more than just a product code; it represents an industry standard for high-performance piston sealing. It skillfully combines the excellent elasticity of the O-ring with the low friction and wear resistance of the PTFE sliding ring, providing a perfect solution for piston sealing challenges in high-pressure, low-speed conditions. Whether in efficiency-driven construction machinery or precision industrial equipment, choosing the SPNO Glyd Ring means opting for reliability, durability, and efficiency.
