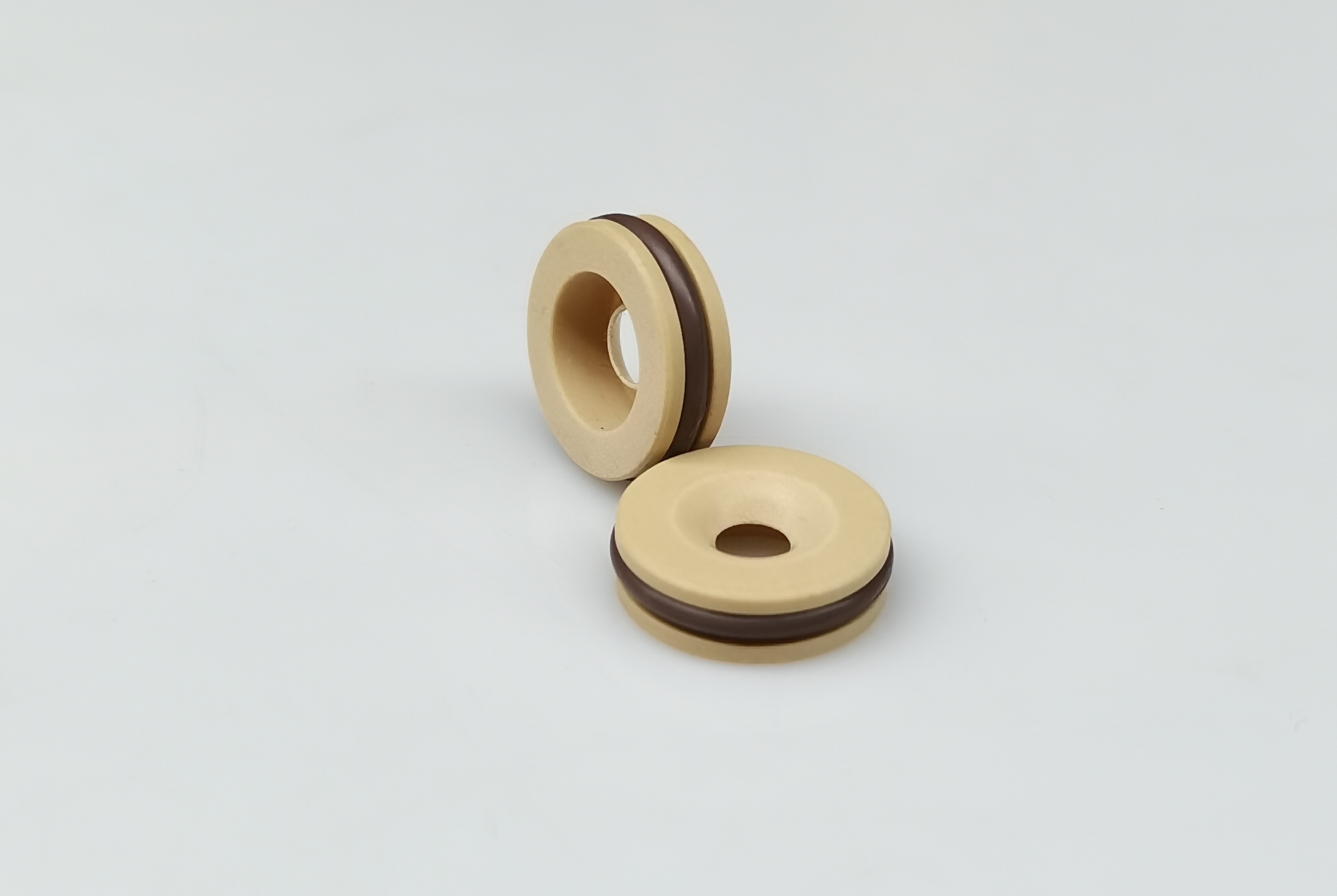

PEEK-Reinforced PTFE Seals: Revolutionary Performance for Extreme Conditions

The integration of 20% polyetheretherketone (PEEK) nanoparticles into PTFE matrices creates a ​hybrid material​ that redefines the limits of conventional sealing solutions. Below is a technical analysis of its properties, enhancements, and applications:

​Core Characteristics: Synergistic Structural Advantages​

PEEK's rigid backbone provides structural support, while PTFE maintains self-lubrication, creating a "ceramic-strength + fluoropolymer-lubricity" composite.

​Key Performance Enhancements​

1. ​Elimination of Cold Flow​

   • PEEK nanofibers (200-500 nm) form reinforcement networks in PTFE grain boundaries.
   • Deformation at 10MPa/150°C drops from 47% (pure PTFE) to 11%.

2. ​Tribological Breakthrough​

   • Maintains μ = 0.05–0.10 with 8× longer service life.
   • Endures 5,000h under dry friction (5MPa, 1m/s) vs. pure PTFE's 600h.

3. ​Thermal Stability Expansion​

   • Continuous operating temperature: 310°C (vs. 260°C for PTFE).
   • Automotive turbocharger seal life increases 400% at 300°C/15,000 rpm.

4. ​Chemical Resistance Upgrade​

   ​Medium​	​20% PEEK/PTFE​	​Pure PTFE​
   ​Strong Oxidizers​	✓ (98% H₂SO₄)	✘ (Fails in HNO₃ fumes)
   ​Organic Solvents​	✓ (Acetone/Xylene)	△ >25% swelling
   ​High-Pressure Steam	✓ (230°C/4MPa)	✘ (Creeps at 150°C)

​Critical Differences from Pure PTFE​

​Targeted Applications​

1. ​Extreme-Temperature Systems​

   • Aircraft fuel valves (-54°C to 280°C thermal cycling).
   • PEMFC bipolar plate seals (110°C + electrochemical corrosion).

2. ​High-Pressure/Lubricant-Free​

   • Supercritical CO₂ compressors (31.1MPa/100°C).
   • Hydraulic servo cylinders (35MPa reciprocating motion).

3. ​Aggressive Chemical Environments​

   ​Industry​	​Application​	​Advantage​
   Semiconductor	Plasma etcher chamber seals	Resists CF₄/O₂ plasma
   Chemical Processing	Concentrated H₂SO₄ pump seals	Zero swelling/metal-free
   Medical	Autoclave rotary joints	316L-grade corrosion resistance

4. ​Weight-Sensitive Equipment​

   • EV powertrains (60% lighter than metal seals, k >0.45 W/m·K).

​Selection Guidelines​

• ​Recommended:
  ✓ Temperatures >200°C without lubrication
  ✓ Strong acids/oxidizers (e.g., HF/H₂SO₄)
  ✓ PV >1.5 MPa·m/s rotary seals
• ​Avoid:
  ✘ Cryogenic LH₂ service (PTFE brittleness persists)
  ✘ Cost-driven applications (4–6× PTFE material cost)

​Next Frontier: 30% PEEK/PTFE composites now test at 350°C/25MPa for 10,000hr in nuclear reactor coolant pumps, heralding new benchmarks for extreme seals.
