Guide Band and Support Ring: The Silent Guardians of Hydraulic Motion

At the heart of hydraulic cylinders, on the piston or piston rod, lie seemingly inconspicuous components: the guide band and the support ring. Yet, acting as precisely matched partners, they shoulder the critical dual mission of ensuring the efficiency, stability, and longevity of hydraulic actuators.

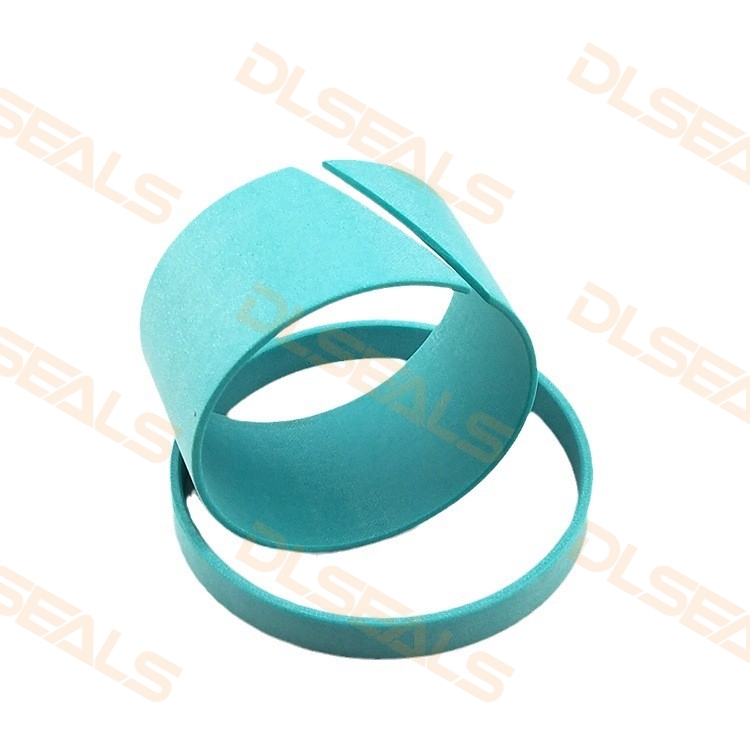

​Guide Band: The Architect of Precise Trajectory​

Its core mission is the ​precise guidance of the piston or piston rod along its axis:

• ​Eliminating Lateral Offset:​​ Under significant side loads, the guide band's tight fit within the cylinder bore/rod end prevents harmful wobbling and scoring of the piston (rod), guaranteeing motion accuracy.

• ​Suppressing Vibration and Noise:​​ By firmly constraining the piston (rod), it significantly dampens vibrations and noise caused by hydraulic shocks, extending overall lifespan.

• ​Optimizing the Sealing Environment:​​ Reducing eccentric motion minimizes additional stress on the primary seals, creating ideal operating conditions for them.

​Support Ring: The Sturdy Backbone Against Pressure​

Its primary task is to ​bear radial loads and prevent extrusion risks:

• ​Resisting Pressure Surges:​​ Under high-pressure conditions (especially during system peaks), the support ring absorbs massive loads through its deformation, protecting the primary seals from crushing failure.

• ​Filling Machining Tolerances:​​ It perfectly fills the clearance gap between the piston/cylinder bore, providing a stable support base for the moving components.

• ​Boosting Pressure Rating:​​ Working synergistically with the primary seals, it significantly enhances the system's overall pressure-bearing capability, extending the cylinder's operational range.

​Synergistic Effect: A Perfect 1+1>2 Partnership​

The cooperation between the guide band and support ring far exceeds simple addition:

1. ​Dual Protection:​​ The support ring first absorbs high-pressure loads and radial forces, ensuring the guide band consistently operates within its design clearance, allowing stable guiding performance.

2. ​Zero Tolerance for Extrusion:​​ Under extreme pressure, the support ring effectively limits the risk of the primary seal being forced into gaps (extrusion failure), while the guide band precisely restricts side movement of the piston that could widen clearances.

3. ​Stability Multiplied:​​ The load-bearing capacity of the support ring combines with the anti-wear guiding effect of the guide band, enabling exceptionally smooth piston travel.

4. ​Extended Service Life:​​ Reducing overall wear and decreasing the burden on seals significantly extends the lifespan of the entire sealing system.

​Material and Design: Key to Reliable Performance​

The performance of this duo highly depends on scientific material selection and precise design:

• ​Guide Band Material:​​ Often reinforced PTFE, phenolic resin, or other low-friction, wear-resistant composite materials.

• ​Support Ring Material:​​ Requires materials with excellent elasticity and good recovery from pressure deformation, such as Polyurethane (PU), filled nylon, or PTFE composites.

• ​Optimized Groove Design:​​ Precise groove dimensions and rational structural design (e.g., shoulder height, installation chamfers) are fundamental for correct installation and optimal performance.

​Application Areas: Guardians Where Reliability is Paramount​

In fields such as heavy-duty hydraulic cylinders for construction machinery, precision hydraulic equipment, and high-pressure actuators, the combination of guide band and support ring has become the standard configuration for enhancing system reliability – their failure can lead to piston scoring, rapid seal degradation, or even cylinder barrel damage.

​Conclusion​

In the modern hydraulic world demanding efficiency and strength, the collaborative synergy of the guide band and support ring has become a critical cornerstone for ensuring stable system operation. A deep understanding of their individual roles and cooperative mechanisms is decisive for designing efficient, durable, and reliably performing hydraulic systems. It is these "silent guardians" that allow hydraulic devices to consistently deliver precise and powerful force output, even in complex and demanding environments.
