Sealing Rings: The Lifeline and Safety Guardian of Hydraulic Jacks

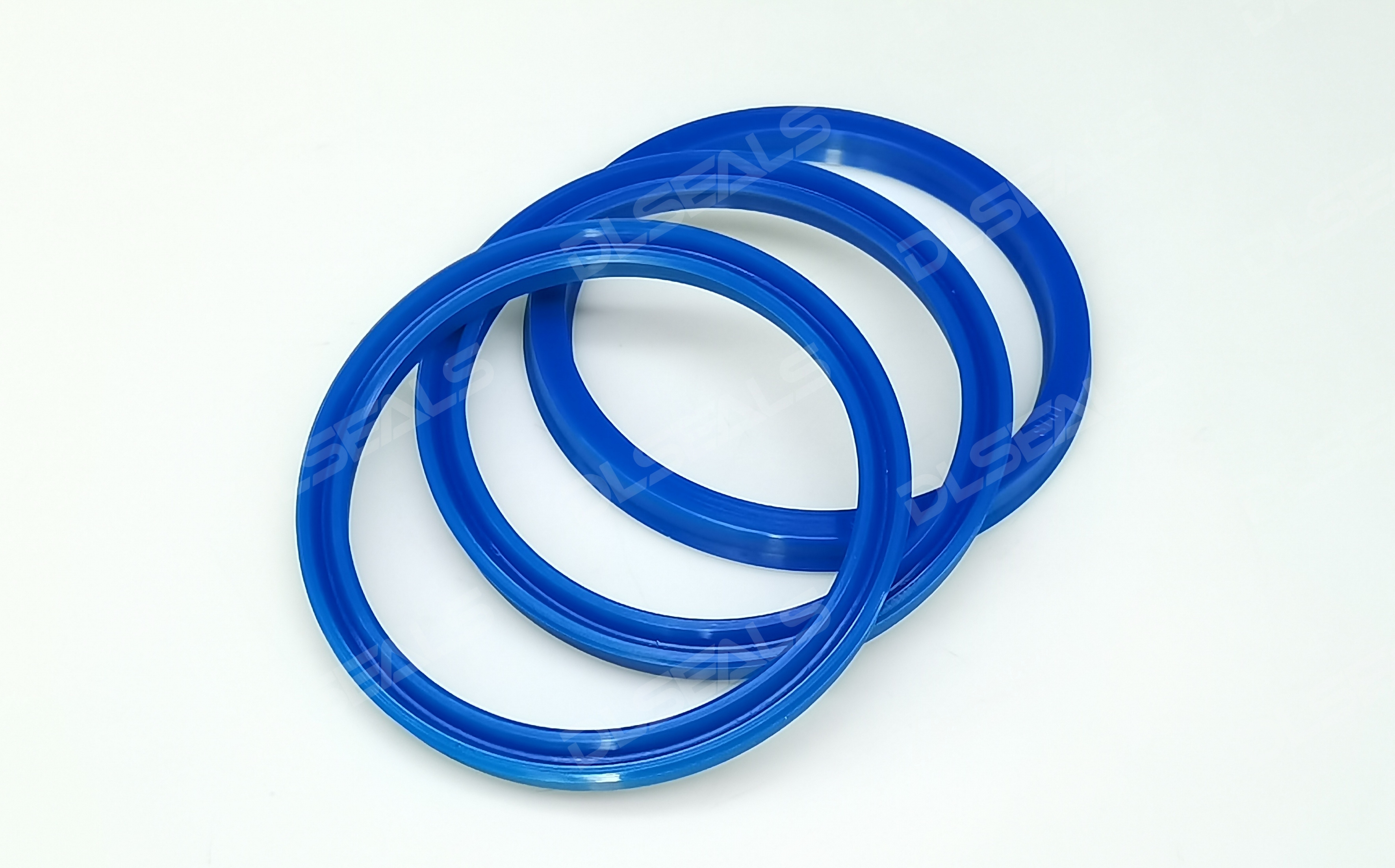

Jack seal

Sealing rings are the core components of hydraulic jacks, directly determining their sealing performance, pressure-bearing capacity, and service life. Below is a detailed breakdown of key knowledge about sealing rings:

I. Core Functions of Sealing Rings

1.Prevent Hydraulic Oil Leakage
• Ensure hydraulic oil does not leak from the sealed oil circuit, maintaining stable pressure (basis of Pascal’s Law).
2.Block External Contaminants
• Prevent dust, moisture, etc., from entering the hydraulic system, avoiding oil contamination and part wear.
3.Reduce Friction Loss
• Some seals (e.g., guide rings) minimize hard friction between metal parts, extending piston/cylinder life.

II. Types & Locations of Sealing Rings

Type	Location	Features
O-ring	Static seals (end caps, valve block interfaces)	Low cost, high elasticity; fills gaps via compression (seals tighter under high pressure)
U-ring (lip seal)	Dynamic seals (piston, piston rod)	Lip structure automatically tightens against the cylinder wall under pressure; low friction at low pressure, enhanced sealing at high pressure
V-combo seals	High-pressure piston rod seals	Multi-layer stacking (3–5 segments); high pressure resistance (>70 MPa), anti-extrusion
Wiper seal	Outer end of piston rod	Scrapes dust/oil from the rod surface; first barrier against contamination
Guide/wear ring	Both sides of piston	Prevents metal-to-metal contact; reduces friction and eccentric wear (keeps piston centered)

III. Material Selection & Comparison

Common materials must meet four criteria: oil resistance, pressure resistance, temperature resistance, wear resistance.

Material	Properties	Application Scenario
Nitrile (NBR)	Excellent oil resistance (mineral oil); cost-effective; temp: -30°C~120°C	Low/medium-pressure jacks (O-rings/U-rings)
Polyurethane (PU)	Superior wear/extrusion resistance; high pressure tolerance; poor hydrolysis resistance	High-pressure piston seals (U/V-rings)
Fluororubber (FKM)	High-temp resistance (-20°C~200°C); chemical/fuel corrosion resistance; expensive	High-temp/special oil (e.g., aviation)
PTFE (Teflon®)	Ultra-low friction; chemical corrosion resistance; requires rubber elastomer support	Guide rings, high-speed seals

IV. Common Causes of Seal Failure

1.Aging/Cracking
• Long-term exposure to heat/ozone hardens rubber, losing elasticity (NBR degrades rapidly >120°C).
2.Extrusion Damage
• Overpressure or excessive gaps force seals into metal crevices (high-pressure applications require anti-extrusion rings).
3.Wear/Scratches
• Oil contamination, piston rod rust, or scoring (scratches >5µm can breach seals).
4.Improper Installation
• Overstretching causes permanent deformation; burrs in seal grooves damage lips.

V. Maintenance & Replacement Guidelines

1.Regular Inspection
• Check for oil leaks (oil droplets on the rod = main seal failure); weak lifting may indicate internal leakage (piston seal damage).
2.Cleaning & Protection
• Retract the piston rod after use; release pressure during storage.
3.Professional Replacement
• Replace seals in sets matching OEM size/material; use dedicated tools (avoid forceful squeezing).
4.Lubrication Requirements
• Apply hydraulic oil to seals during assembly (dry friction burns lips).

⚠️ Warning: Hydraulic oil leaks/seal failure may cause:
• Sudden load drops (Danger!)
• Insufficient system pressure (fails to lift)
• Contaminants jamming hydraulic valves

VI. Technological Trends

• Composite Seals: e.g., PTFE coating + rubber base (low friction + high elasticity)
• Smart Monitoring: Embedded sensors detect abnormal pressure/temperature in seals.
• Long-life Materials: Hydrogenated nitrile rubber (HNBR) with temperature resistance up to 150°C.

Though small, sealing rings are the "lifeline" of hydraulic jacks. Proper selection and maintenance significantly enhance reliability—especially in automotive repair and heavy machinery, where safety redundancy is paramount!
